Innonix Technologies is a global biomedical materials R&D company with numerous intellectual properties and patents developed by U.S. scientists. The company began research efforts in 2007, culminating in the 2013 sale of a surgical mask with an antimicrobial/antiviral agent that comes under the new FDA product code OUK. This mask with ViraxTM technology is the genesis of the RespoKare® line of masks.

Millions of the RespoKare® antiviral surgical grade flat masks have been sold in the U.S. since 2013 under a private label with one of the country’s largest medical suppliers.  We are proud to now make RespoKare® available directly to the consumer and medical professionals.

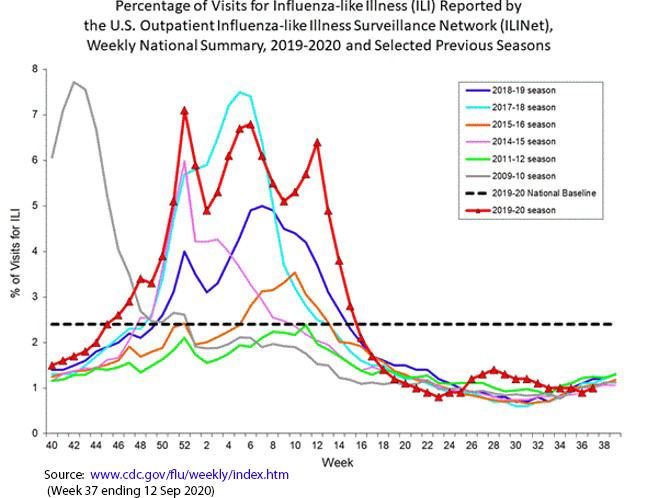

Respiratory Viruses are Getting More Virulent

The intensity of flu seasons is rising globally. We face unprecedented threats from coronaviruses that cause SARS, MERS, COVID-19.

Direct & Indirect Transmission

Viruses and germs are transmitted through direct contact with an infected person, from infected respiratory droplets, aerosols, or surfaces, including face masks.

Anti-Viral Mask Line Construction The mask features a four-layer construction. The outer two layers use our patented Virax™ biotechnology to quickly destroy viruses & pathogens.

Outer Virax™ Layer

1. The outer Virax™ layer coating is hydrophilic, allowing infectious laden droplets to be rapidly absorbed and trapped.
2. The outer Virax™ layer coating is a low pH environment which starts to denature and damage the surface membrane of viruses within 5 seconds.
3. Infected droplets are quickly wicked away from the outer surface into the second Virax™ virucidal layer where the viruses are trapped and destroyed.

Second Virax™ Layer

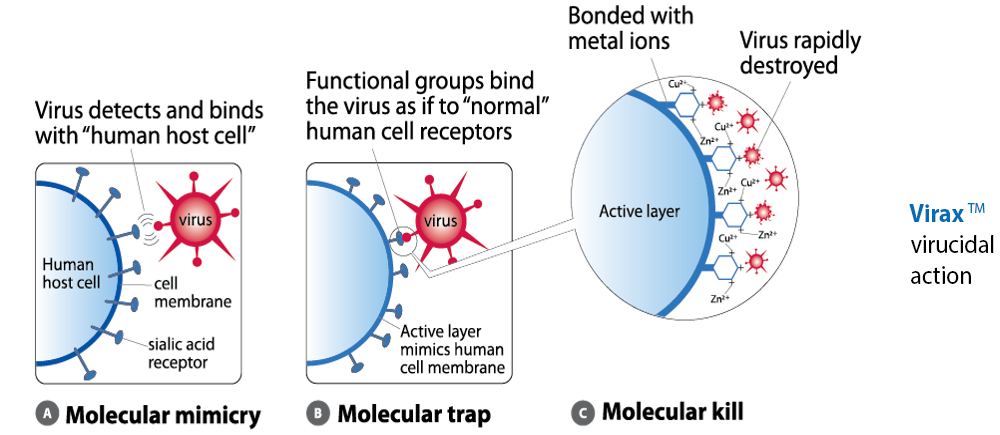

The second Virax™ virucidal layer is a non-woven rayon material treated with active functional groups that mimic the binding of viruses to sialic acid on the surface of living host cells.

Viruses trapped in this layer are exposed to high localized concentrations of copper and zinc ions which destroy the viruses through ionic interactions with proteins and RNA or DNA.

Benefits of the Virax™ Technology

The RespoKare® Anti-Viral mask line provides active anti-viral protection, and at the same time provides the highest-level barrier against fluid/blood penetration.

Effectiveness

10,000 times more effective than an ordinary mask.*

*) Laboratory tests show at least a 4-log reduction (99.99%) of coronavirus, measles, and influenza viruses that come in contact with the mask surface.

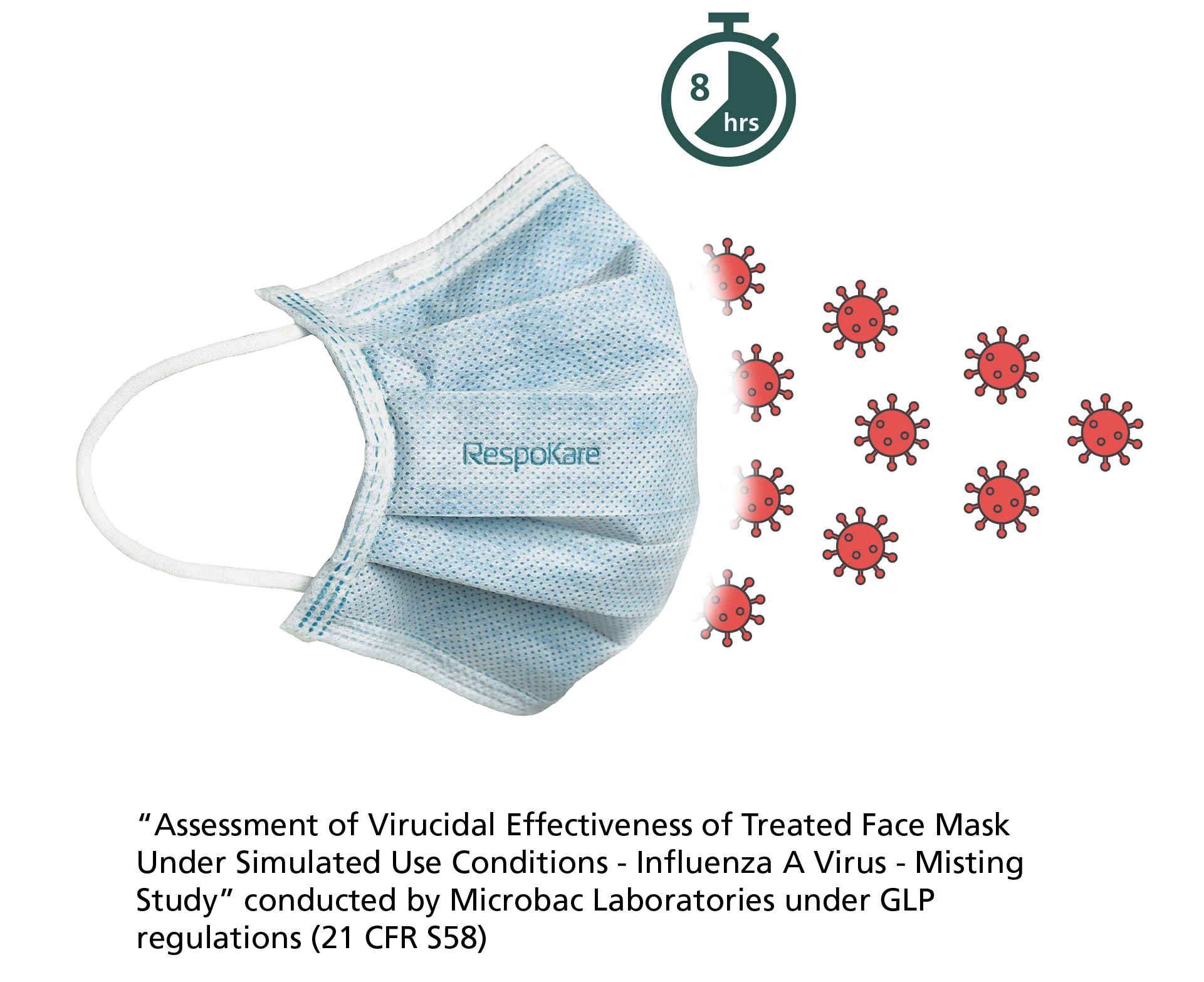

In independent laboratory tests simulating conditions of continuous use with virus exposure, the RespoKare® Anti-Viral mask effectively destroyed 99.99% of the virus challenge over an 8-hour period.†

Fit and Comfort

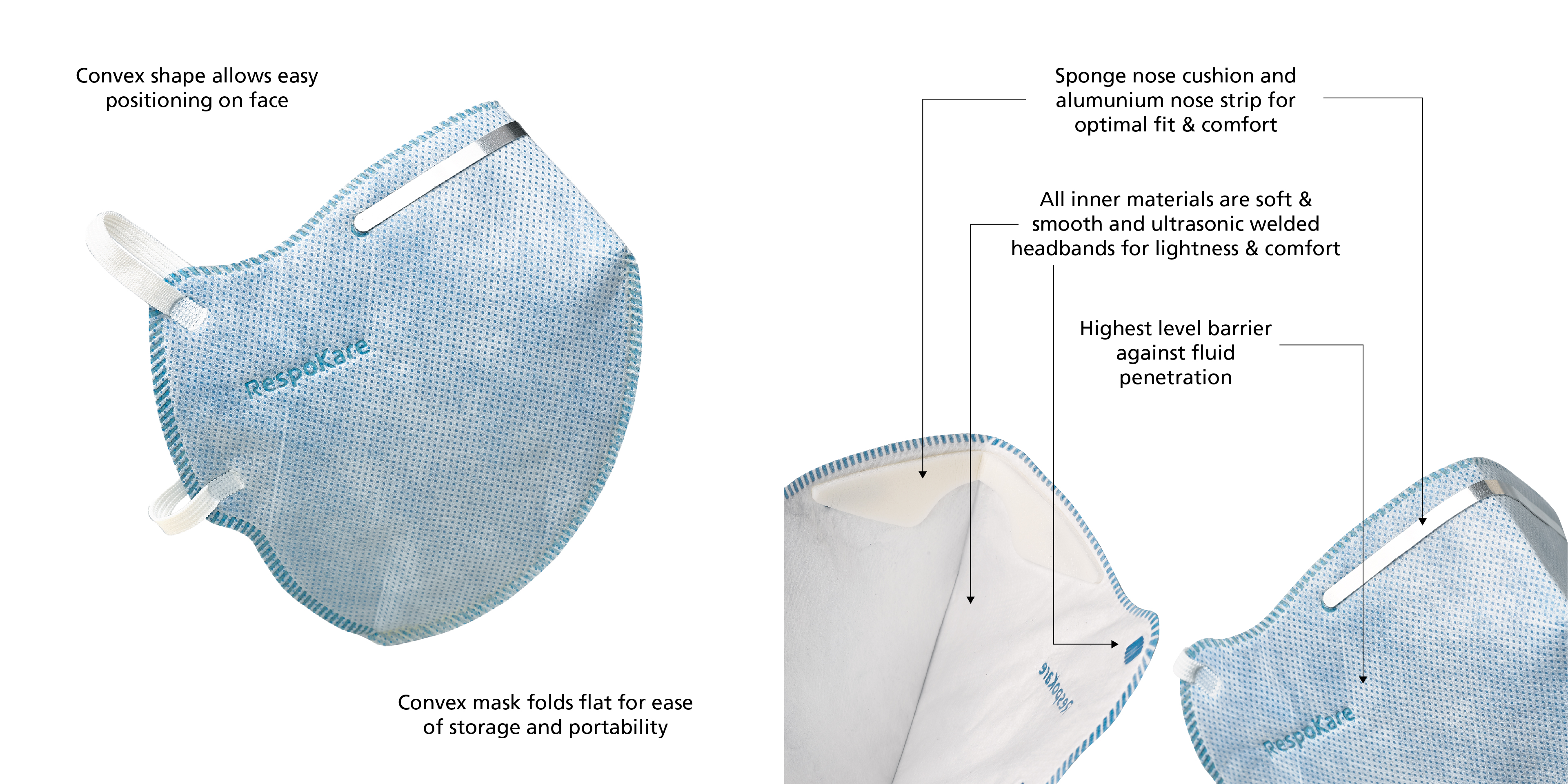

N95 Respirator Plus

The convex shape allows good positioning on the face, while the flat design folds vertically for added convenience.

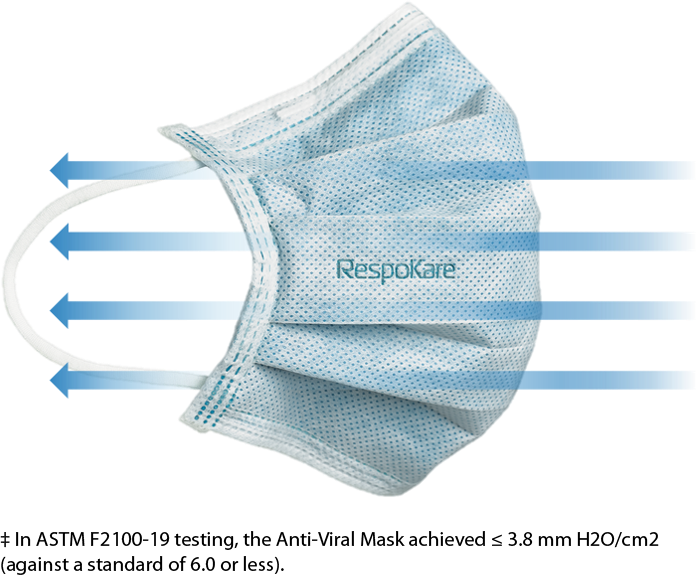

Anti-Viral Mask The RespoKare® Anti-Viral Mask is designed to achieve especially low airflow resistance‡ for easy breathing and is made of soft materials for comfort.

Reliability and Safety

Meets or exceeds U.S. and international standards.

• The Virax™ coatings are formulated using a patented combination of commonly used food additives that are proven safe and effective.
• Tested for compatibility with skin contact and safety from extractables under ISO 10993.
• The mild scent on the mask surface is safe and comes from residual traces of acetic acid from the coating process. (Acetic acid is the same as white vinegar).

Sizing Guide

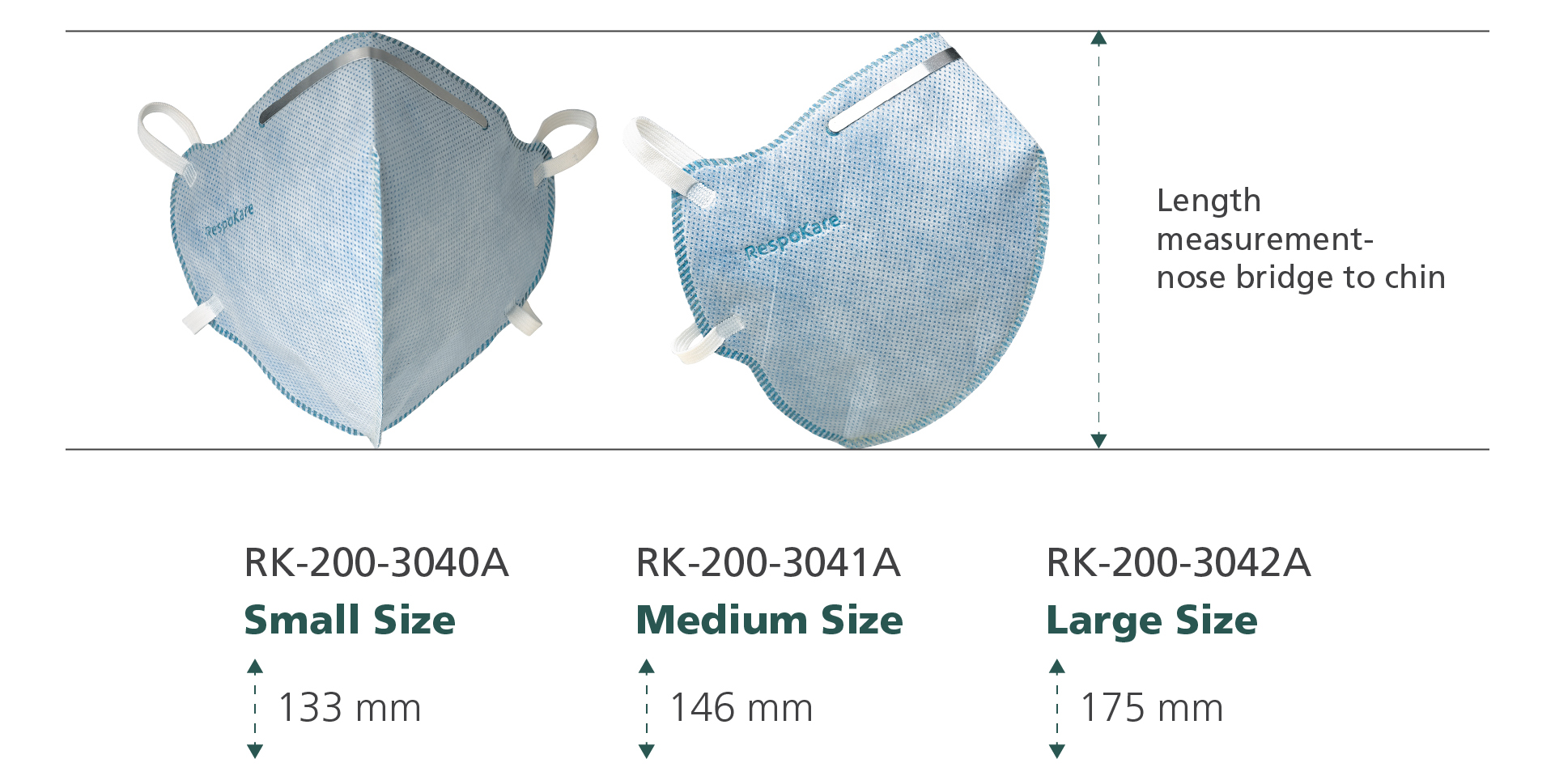

N95 Respirator Plus

• NIOSH approved fitting
• Convex mask for comfort
• S, M, L for correct fit
• Fit-test must be performed for medical professionals
• Please follow instructions for correct wearing and removal

Anti-Viral Mask

Adult
US FDA-cleared surgical mask conforming to ASTM F2100 Level 3 and EN14683 Type IIR standards with patented active protection.

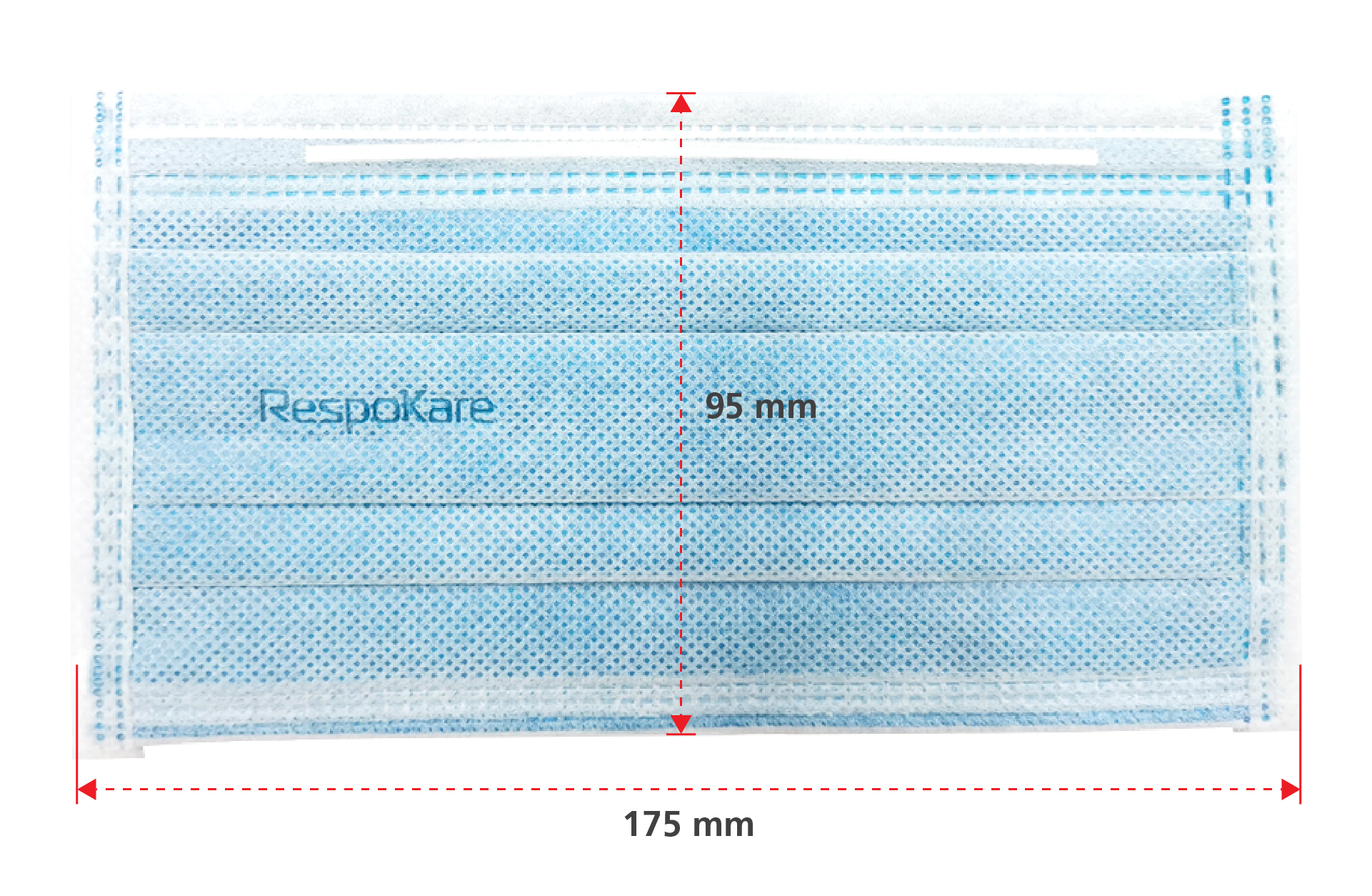

Below is adult size in flat model.




Children
US FDA-cleared surgical mask conforming to ASTM F2100 Level with patented active protection.

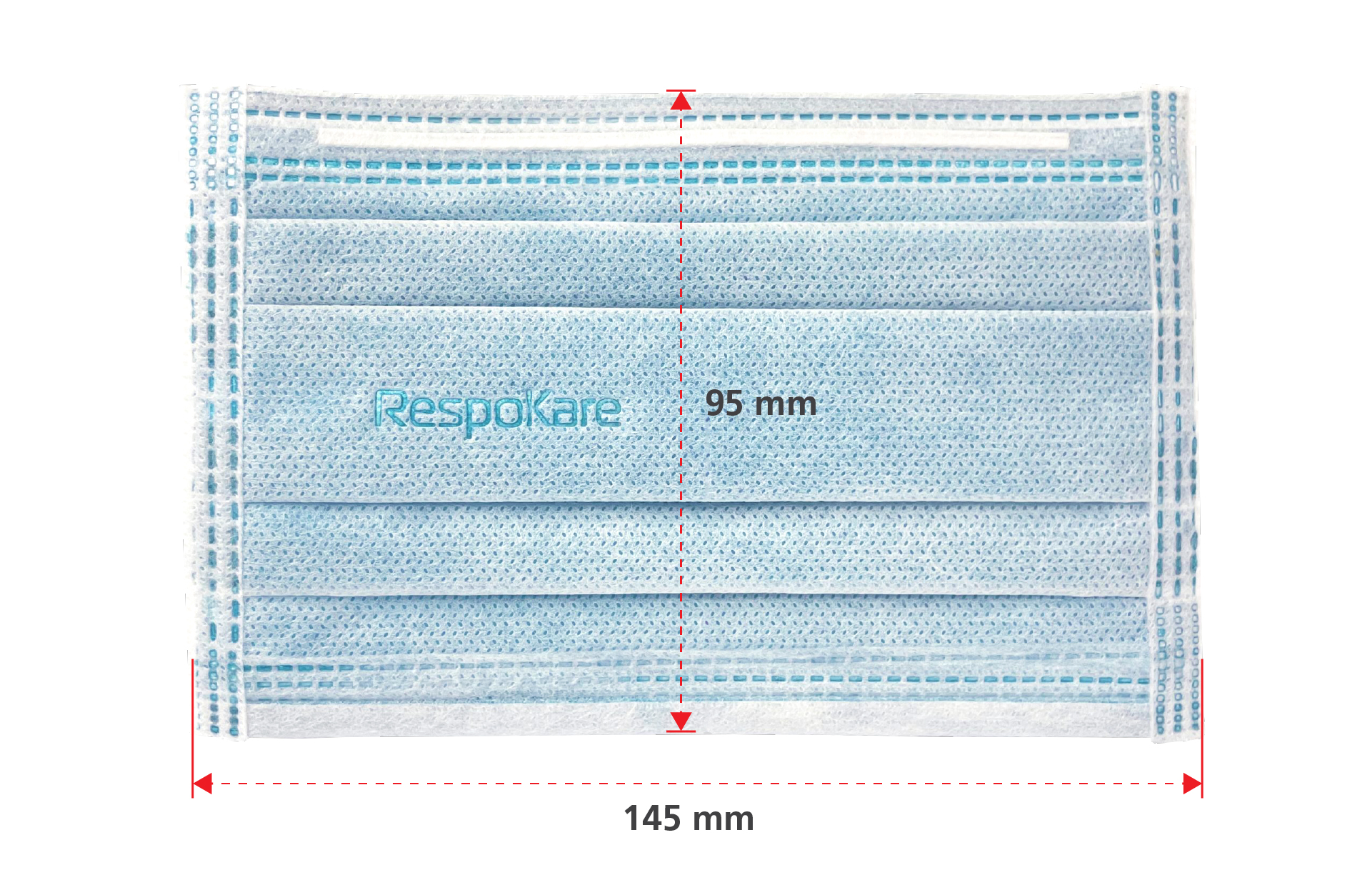

Below is child size in flat model.

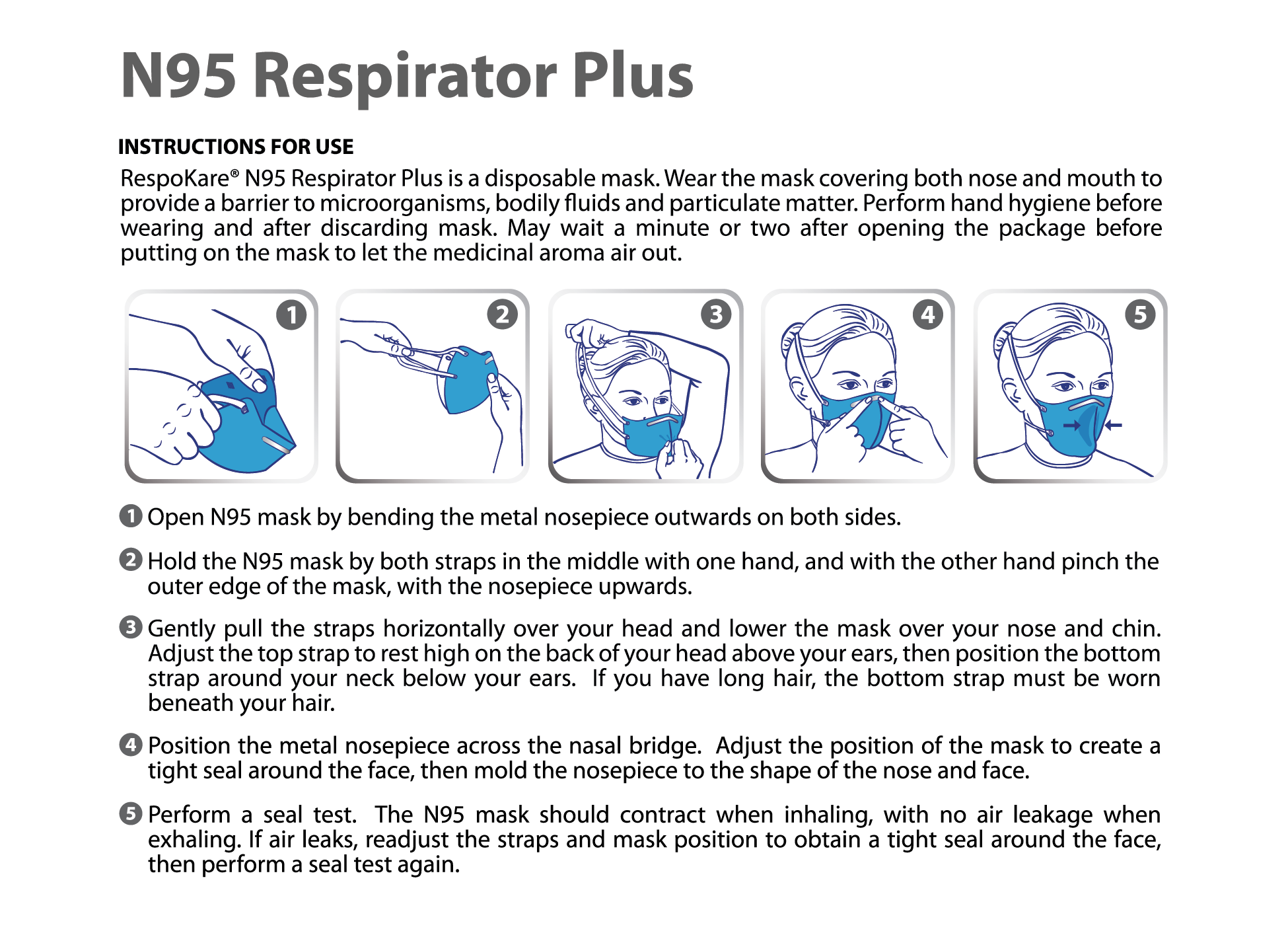

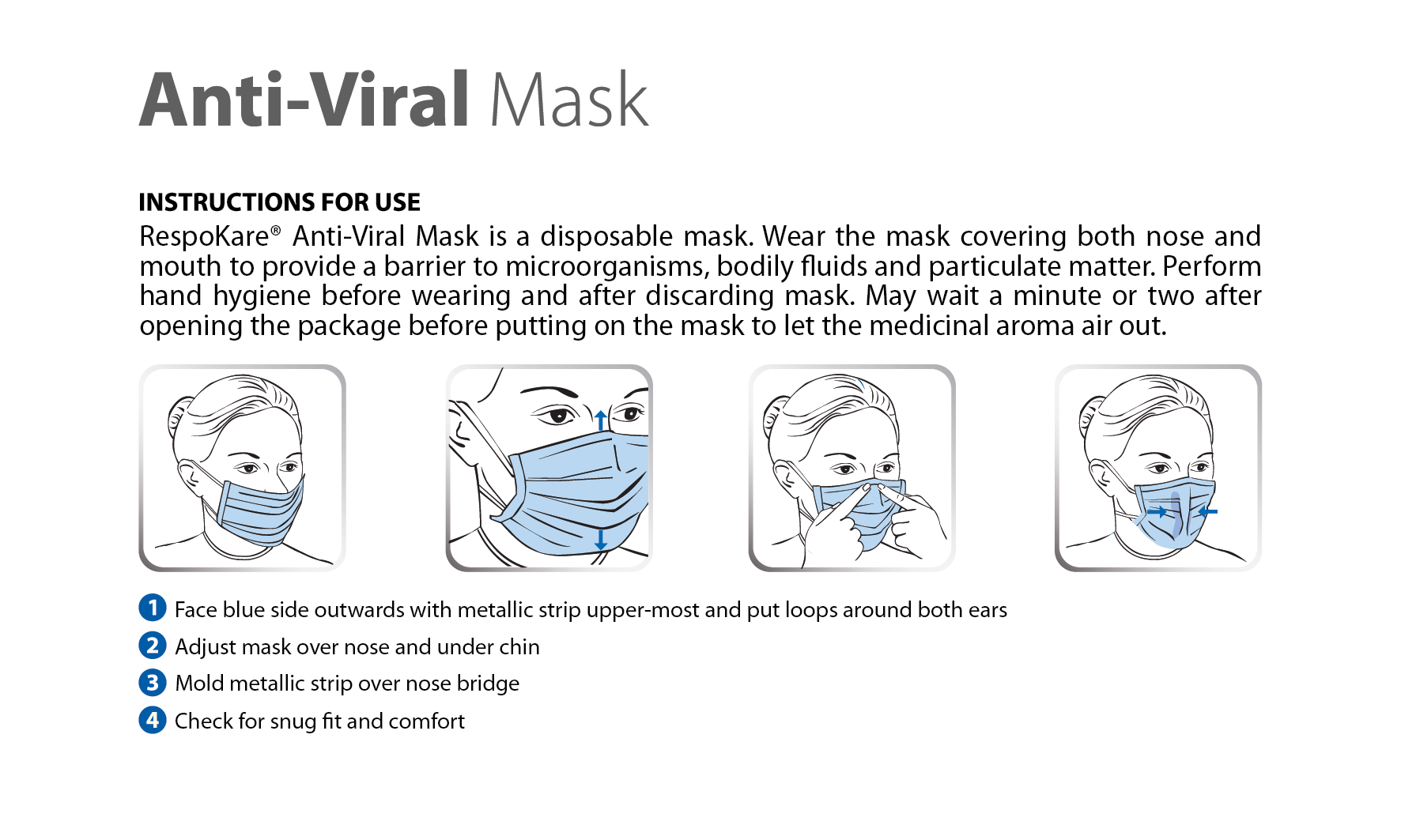

How to Wear?

N95 Respirator Plus

• US NIOSH approved and US FDA-cleared surgical N95 respirator with patented ViraxTM protection
• Convex model in three sizes: small, medium, large
• Designed for comfort and fit

Anti-Viral Mask

• US FDA-cleared surgical mask conforming to ASTM F2100 Level 3 and EN14683 Type IIR standards with patented Virax™ protection
• Two sizes:
  • Adult size in flat model
  • Child size in flat model, recommended for ages 5-10 years

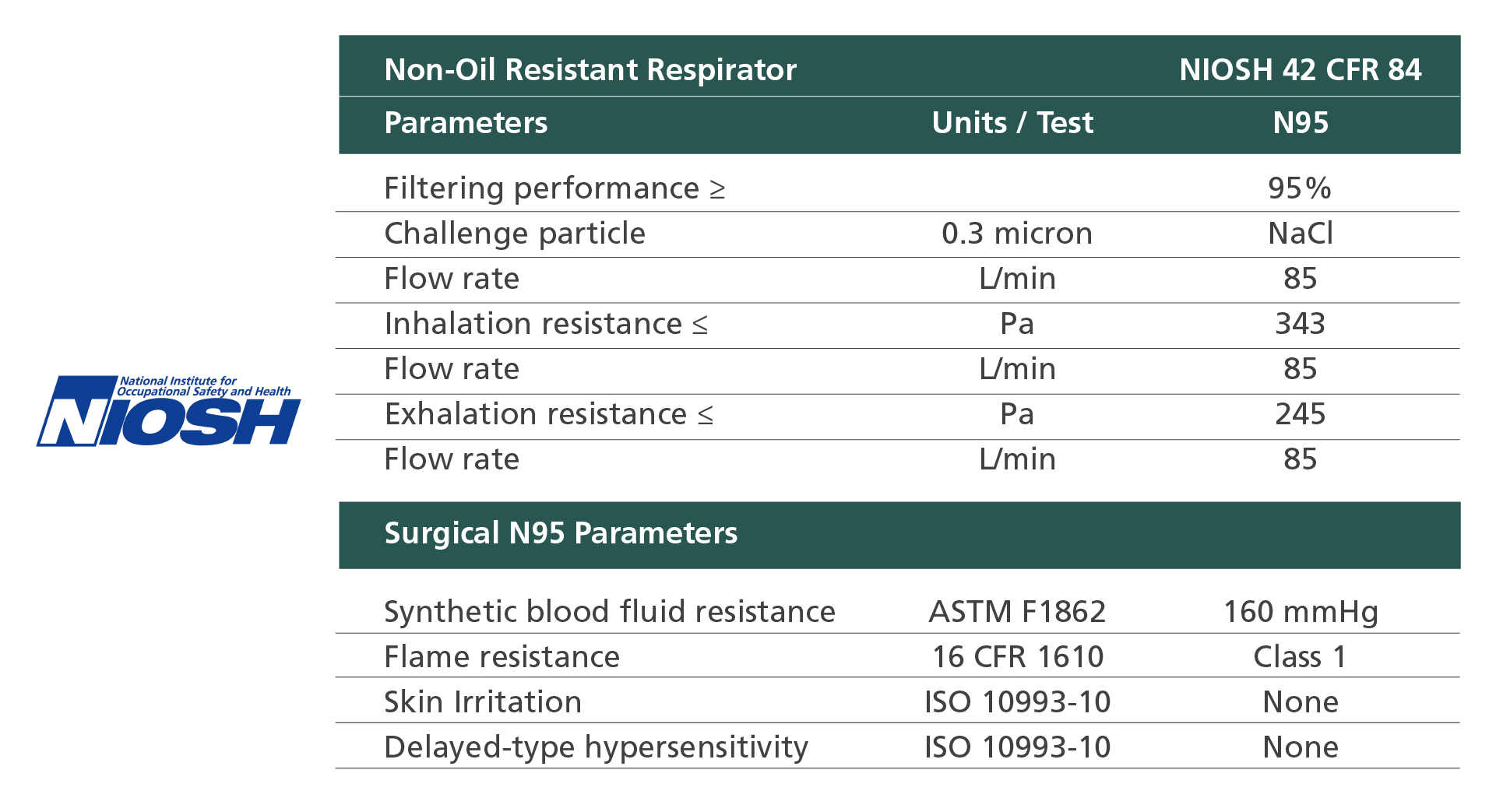

N95 Respirator Plus Certifications

• The RespoKare N95 Respirator Plus is NIOSH Approved
  • Approval code: TC-84A-7796
  • Greater than 95% filtration efficiency against solid and liquid aerosols that do not contain oil
• N95 Respirator Plus also conforms to all relevant standards for surgical N95 (as shown in the diagram)
• RespoKare N95 Respirator Plus is entered in the ARTG, ARTG number 297583

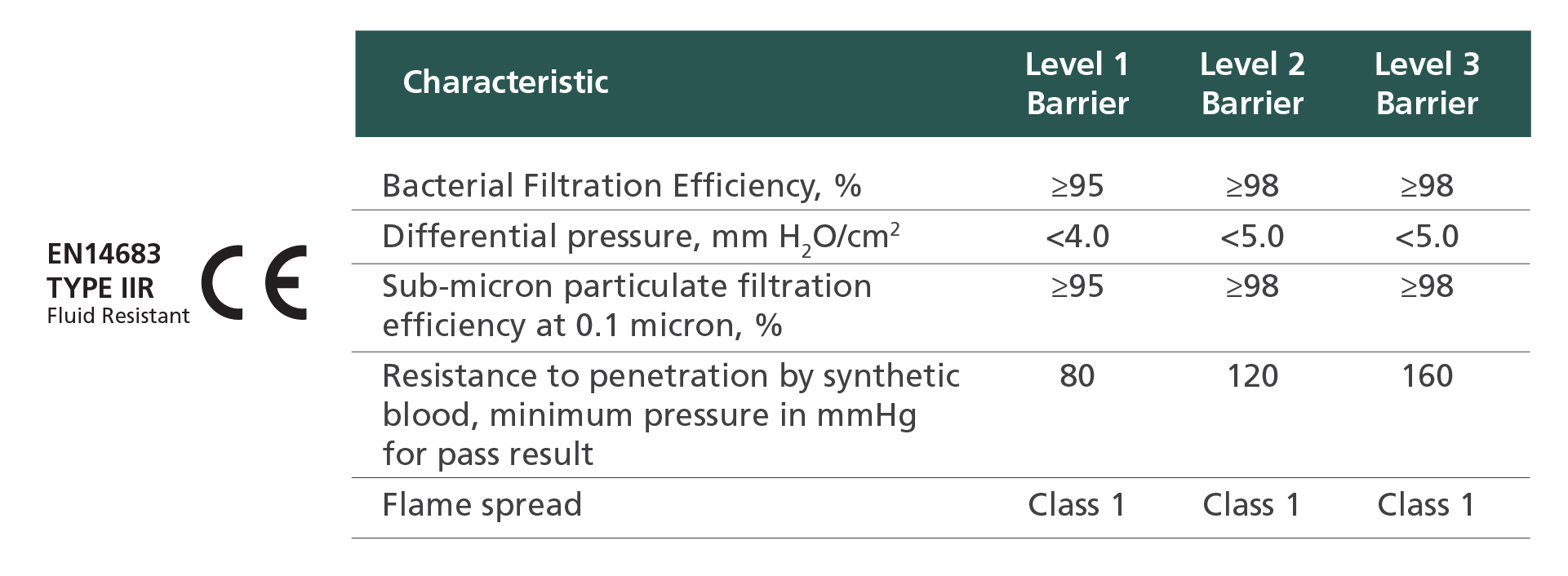

Anti-Viral Mask Certifications

• All surgical masks cleared by the US FDA must pass a series of tests mandated by ASTM standard F2100 regulating mechanical performance
• RespoKare Anti-Viral Mask achieves the highest ASTM F2100 Level 3 Barrier standard
• RespoKare Anti-Viral Mask also meets the European standard for surgical masks: EN14683, rated at the highest Type IIR (fluid resistant)
• RespoKare Anti-Viral Mask is entered in the ARTG, ARTG number 339564

Patents Related to Anti-Viral Mask Technology U.S. Patent No.: US 8,678,002 B2 “Devices and methods for decreasing human pathogen transmission” U.S. Patent No.: US 9,963,611 B2 “Composition for use in decreasing the transmission of human pathogens” Registered in U.S. and 23 other jurisdictions

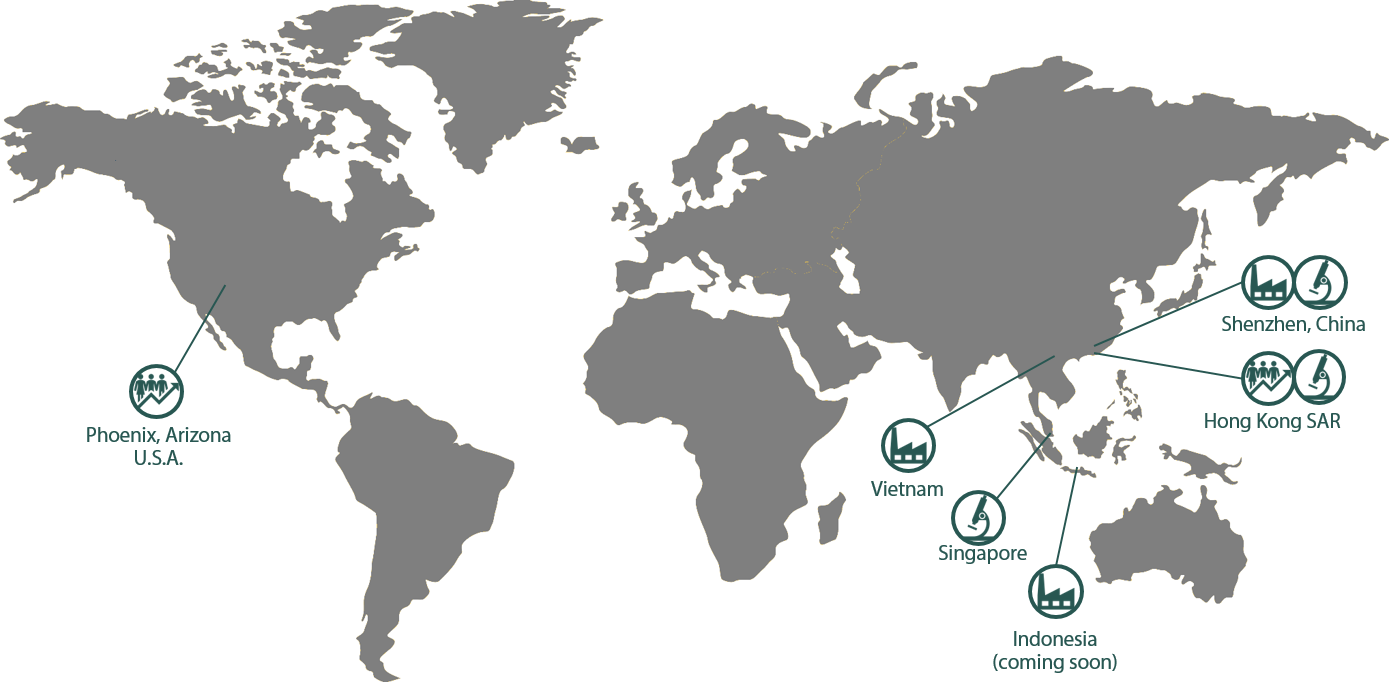

Our Network

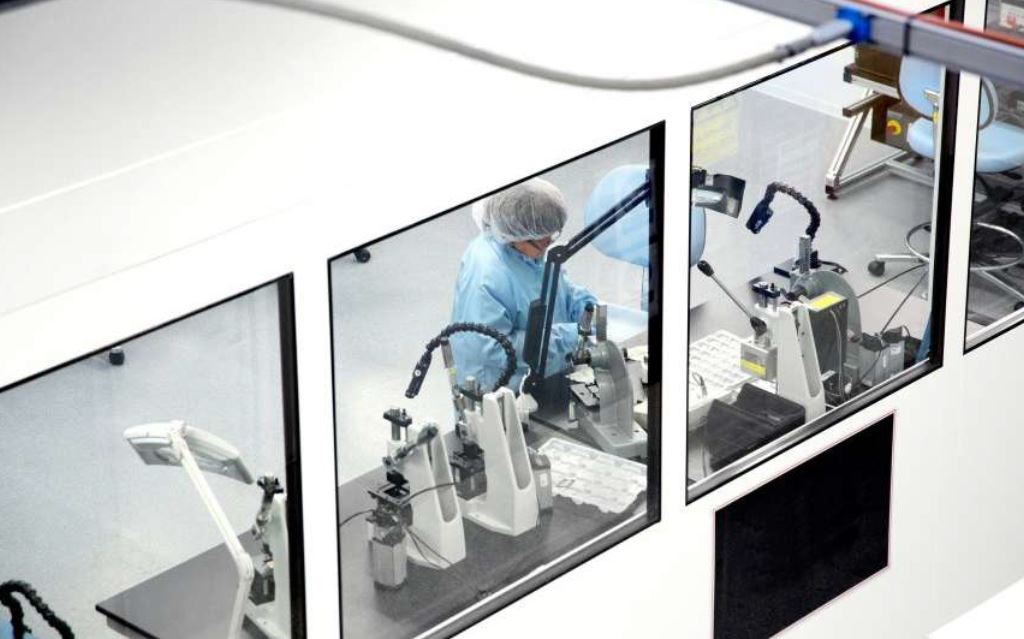

Innonix Technologies is a global biomedical materials R&D company who has business presence in the United States, Singapore and Hong Kong, and manufacturing facilities in Vietnam and China.

We are also supported by an extensive idsMED sales & distribution network in Indonesia, Malaysia, Philippines, Singapore, Thailand, Vietnam.

Contact Us

• The United States – inquiry@respokare.com
• Rest of the World – enquiry@respokare.com

Official Distributors

Follow Us

RespoKare® Launches FDA-Cleared Child's Anti-Viral Face Mask

Arizona based Innonix Technologies USA LLCunveils the RespoKare® line of face masks, including the first FDA-cleared anti-viral child’s mask to destroy quickly 99.99% of human coronavirus as well as influenza and other viruses within minutes of contact with the mask. The RespoKare® line includes a surgical grade flat mask and a N95 respirator model that utilizes the same technology as the child’s mask. The Valley-based company strives to bring stronger protection to residents who are looking for the best mask on the market.

Press Release

Amazing RespoKare® (True Story)

FAQ

Is it normal if there is a slight scent on the mask?

• The Virax^TM coatings are formulated using a patented combination of commonly used food additives that are proven safe and effective.
• Tested for compatibility with skin contact and safety from extractables under ISO 10993.
• The mild scent on the mask surface is safe and comes from residual traces of acetic acid from the coating process. (Acetic acid is the same as white vinegar).
